A. Scope

This specification applies to Piezo buzzers,130025F-05041T

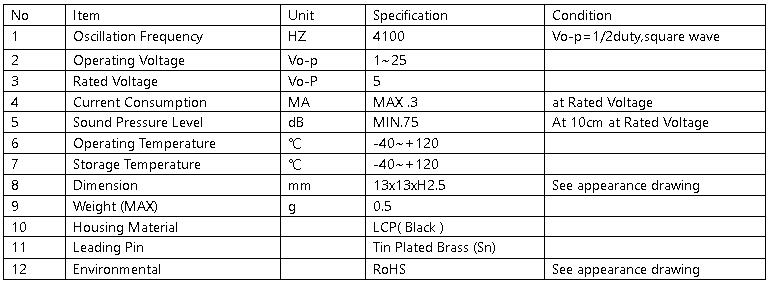

B. Specifications

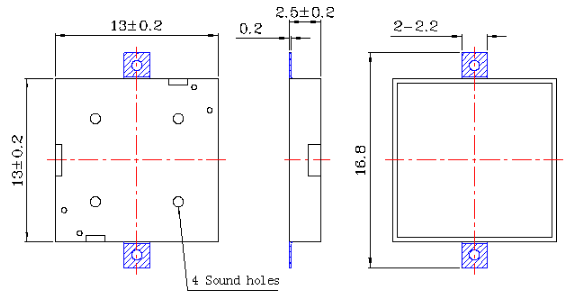

C. Exterior drawing

Tol: ±0.5 Unit: mm

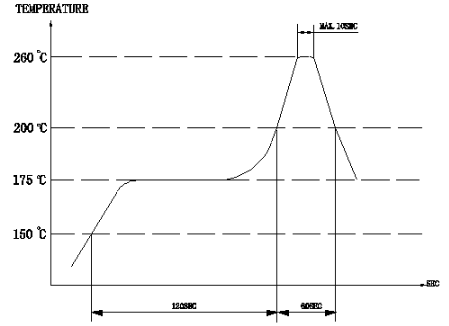

D. Test method

Standard measuring condition

Temperature: 25±2℃ Humidity: 45-65%

Acoustic characteristics:

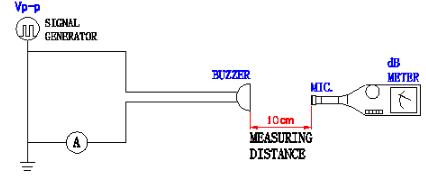

The oscillation frequency, current consumption and sound pressure are measured by the measuring instrument shown below.

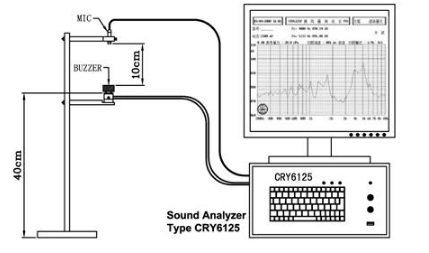

In the measurement test, the buzzer is placed as follows:

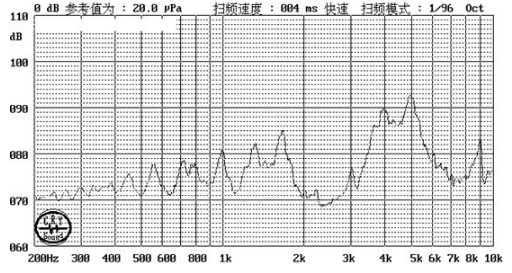

E. Voltage/current/sound pressure characteristics

F. It is recommended that the drive circuit base current Ib should
be high enough to saturate the collector current of the transistor under a CB load.

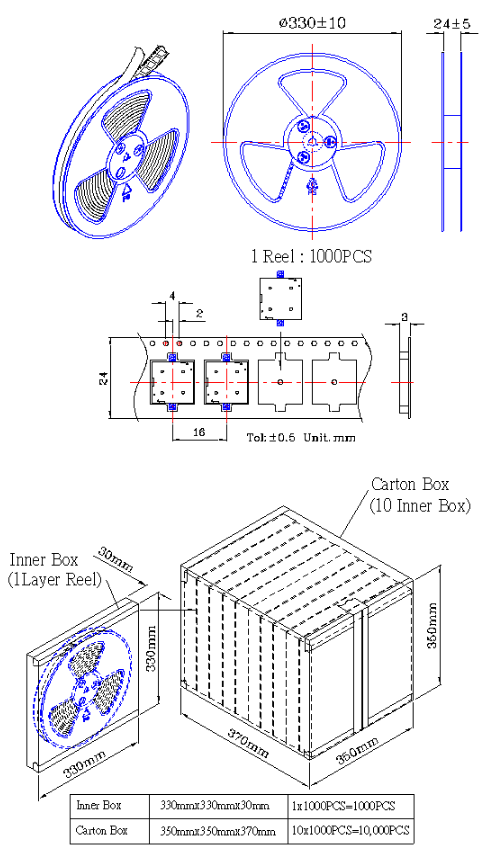

G. Packaging Standards
